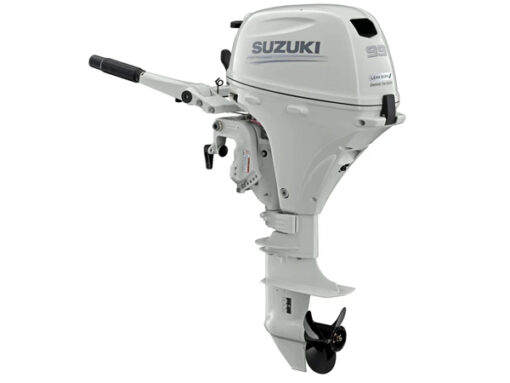

2019 SUZUKI 9.9 HP DF9.9BTHXW2 OUTBOARD MOTOR

2019 Suzuki 9.9 HP DF9.9BTHXW2 Outboard Motor
The all new Suzuki 9.9 HP EFI outboard motor model DF9.9BTHX2 is a 25 inch extra long shaft, electric start. The 128 lb. Suzuki 9.9 HP outboard engine is lightweight, compact and fuel efficient. This 2-cylinder 4-stroke is remarkably smooth and quiet. The Suzuki 9.9hp outboard is an excellent choice for skiffs, as well auxiliary power for sailboats and “kickers” for larger fishing boats and has a 3-star ultra low emission rating. Suzuki designed the 9.9hp with user-friendly features such as the multi-function tiller handle which controls steering, throttle, throttle tension, and power tilt. Additionally, a one-touch steering tension control lever located on the front of the engine allows the user to quickly adjust steering friction.


Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Power Tilt
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
4-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Suzuki 3-Year Warranty

MODEL
DF9.9BTHX2

SKU
DF9.9BTHXW2-19

WEIGHT
128.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
9.9hp

SHAFT LENGTH
25″ (Extra Long)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Power Tilt

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
327 cc (20.0 cubic inches)

BORE AND STROKE
60.4 x 57 mm (2.38 x 2.24 inches)

FULL THROTTLE RPM RANGE
5000-6000 RPM

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

OIL TYPE
SAE 10W-30 or SAE 10W-40

OIL CAPACITY
33.8 fl oz. (1000 mL)

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
12V 145W 12A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.08:1

GEAR SHIFT
Forward-Neutral-Reverse (front-mounted lever)

PROPELLER
4-Blade Aluminum 10″ Dia x 5″ Pitch
