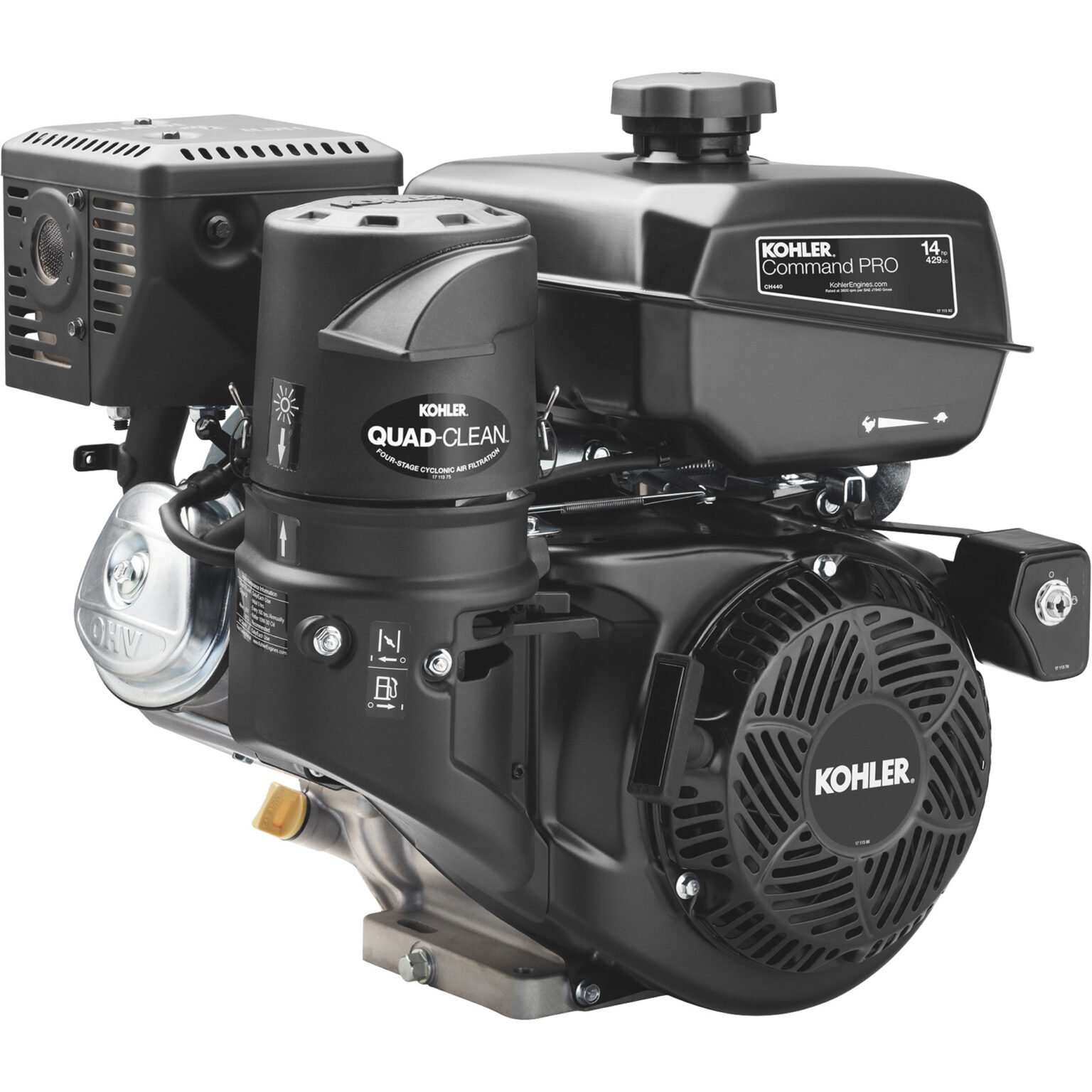

Kohler 4-Cycle Single Cylinder OHV Horizontal Engine 14 HP 429cc
This 14 HP Kohler® 4-Cycle Single Cylinder OHV Horizontal Engine is an original Kohler replacement engine designed to help you power or repower your equipment without the need for expensive modifications. Ideal for a variety of applications. The engine delivers all-weather performance and it’s built to last with top quality components and a host of features designed to deliver longer run times and an extended working life. CARB and EPA emission-certified.n
Kohler 4-Cycle Single Cylinder OHV Horizontal Engine Specs
| Item# | 109849 |
| Brand | Kohler Engines |
| Manufacturer’s Warranty | 36 months parts / 36 months labor |
| Ship Weight | 95.0 lbs |
| Engine Displacement | 429 cc |
| Engine Type | OHV |
| Net Power Output | 14 HP |
| Start Type | Electric w/recoil backup |
| Shaft Diameter | 1 in |
| Shaft Length | 3.5 in |
| Shaft Diameter Metric | 25.4 mm |
| Shaft Length Metric | 88.6 mm |
| Net Torque | 22.7 ft/lbs. |
| Shaft Output | Counterclockwise |
| Shaft Keyway | 0.375 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 3/8-24 UNF |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | Hardened |
| PTO Height | 5.26 in |
| Bearing Type | Parent material |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron liner |
| Compression Ratio | 8.0:1 |
| Cooling System | Air cooled |
| Bore | 3.5 in |
| Stroke | 2.7 in |
| Air Cleaner Type | Quad-Clean™ all-season |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 7.8 qt |
| Fuel Filter | Yes |
| Oil Capacity | 1.4 qt |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Yes |
| Carburetor | Yes |
| Throttle Control | On-engine |
| Choke Control | Engine-mounted |
| Max. RPM | 3,600 |
| Charging System Amps | 18 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 5, 6.5 in |
| Mounting Base Length | 6.5in. and 5in. |
| Mounting Base Width | 6.5in. and 5in. |
| Product Weight | 95 lb |
