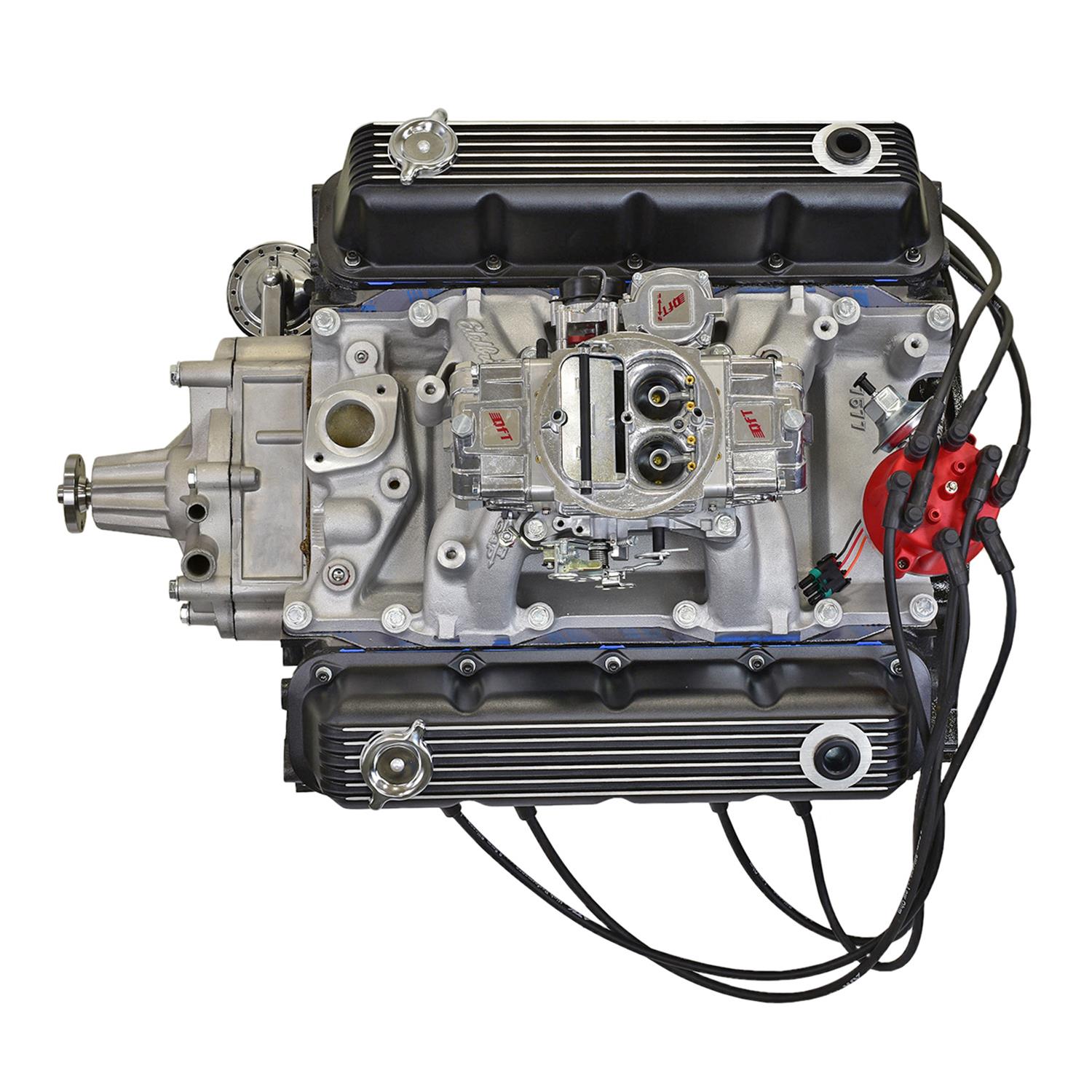

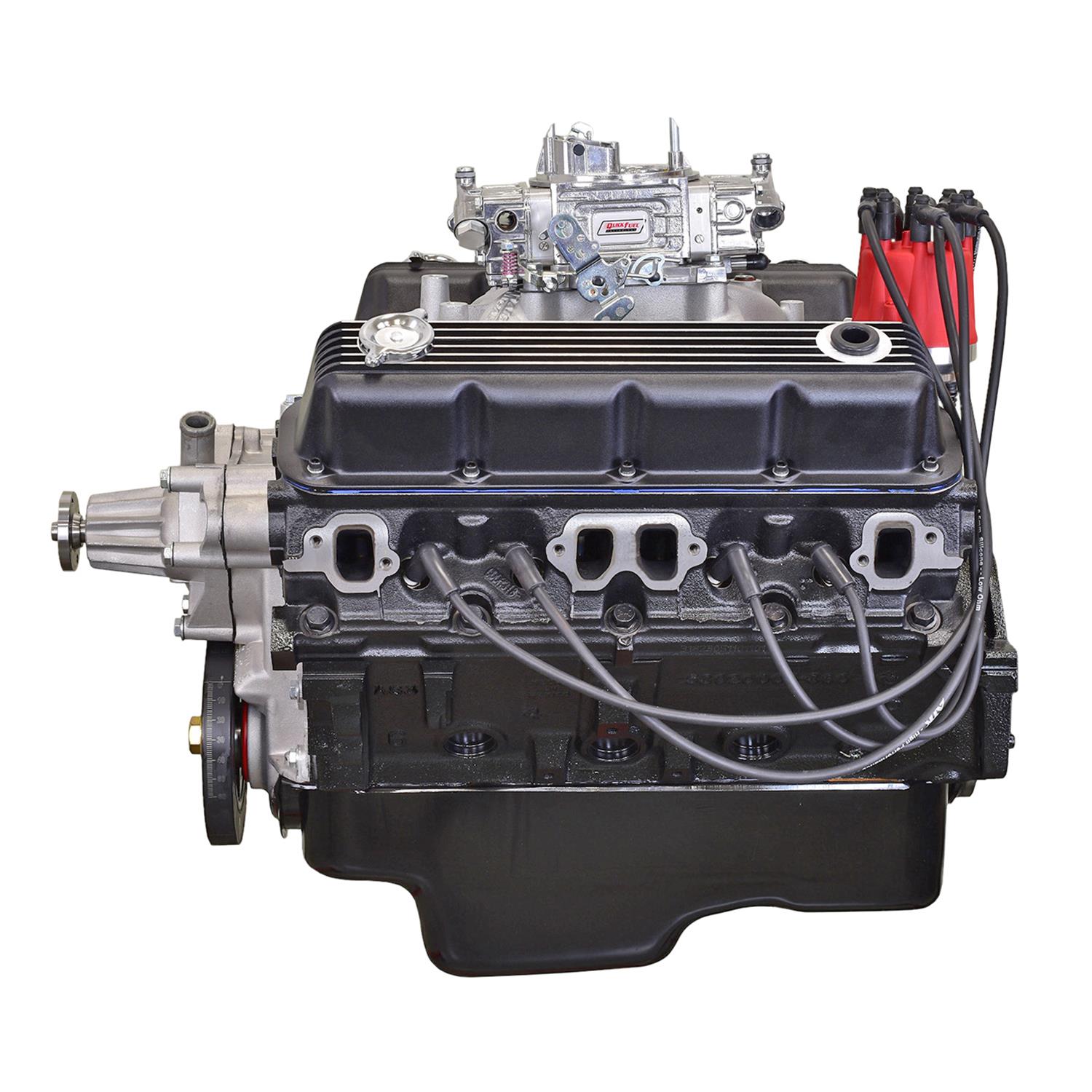

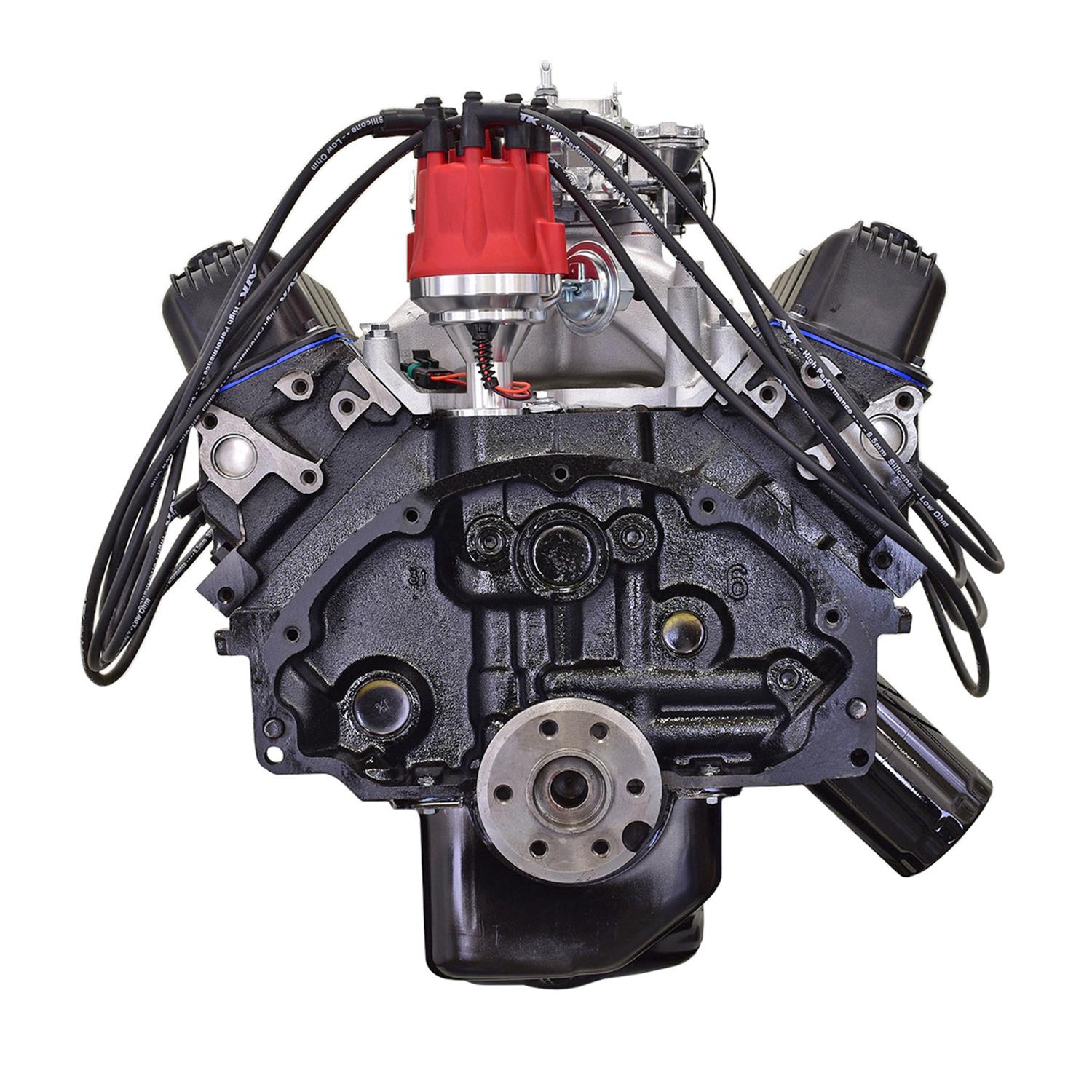

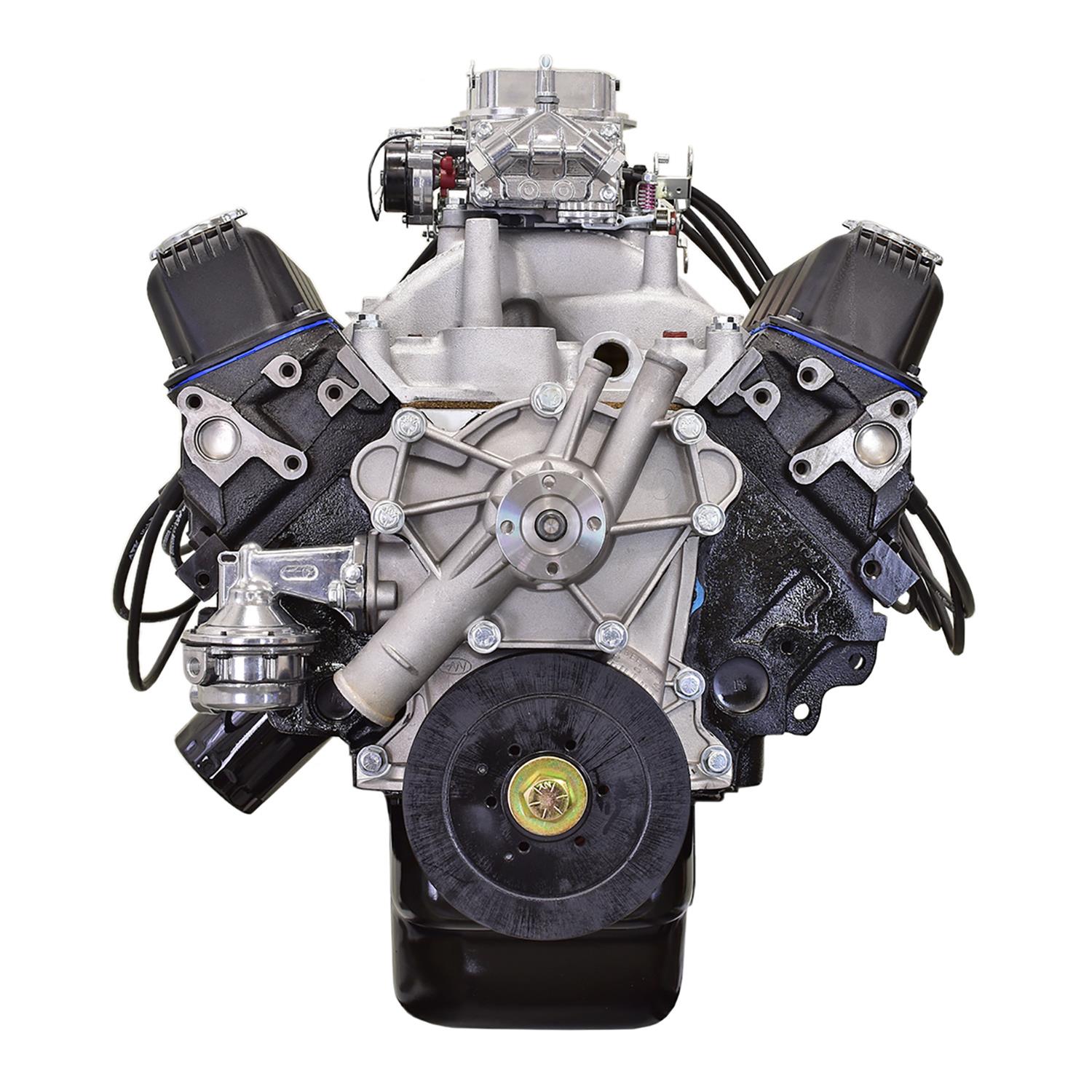

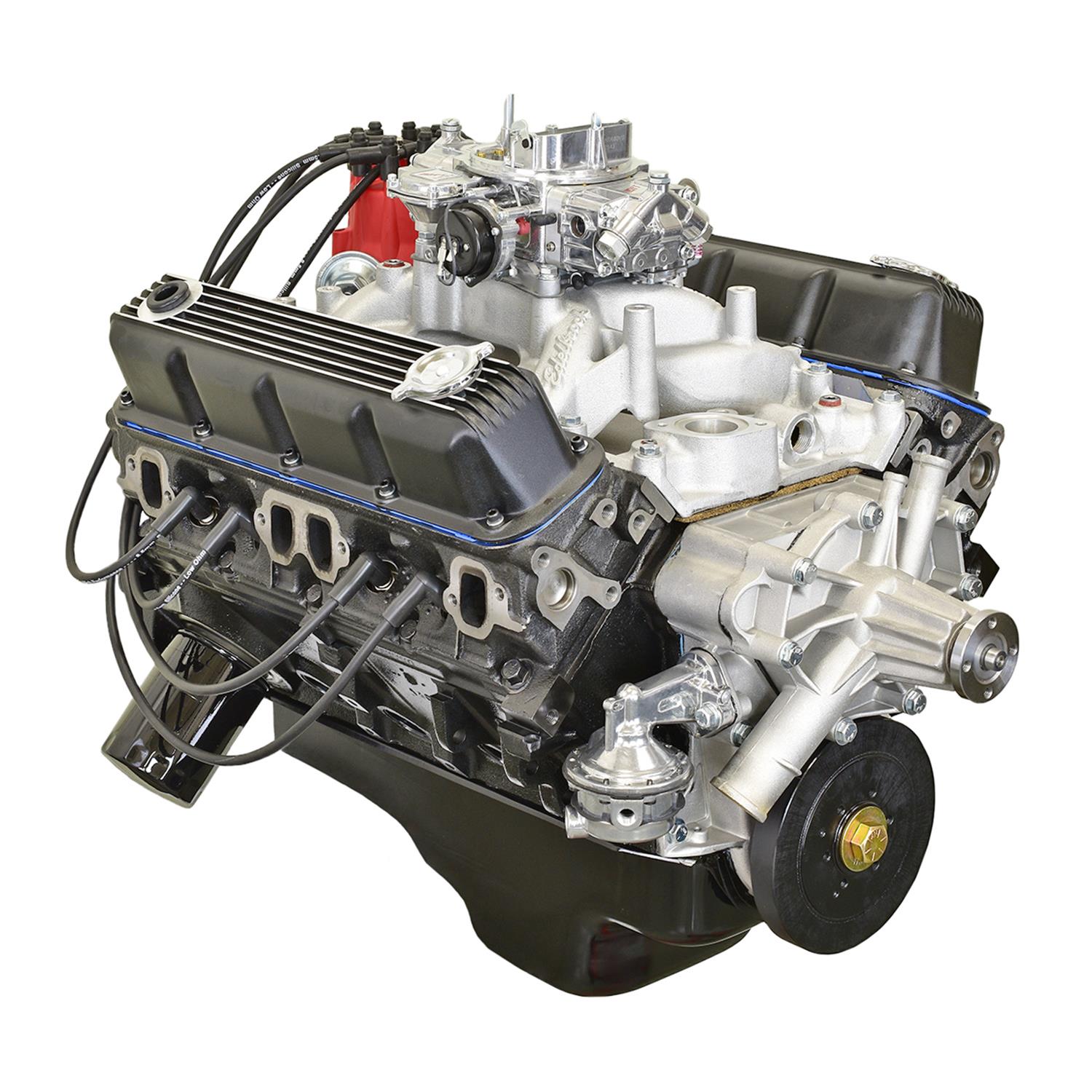

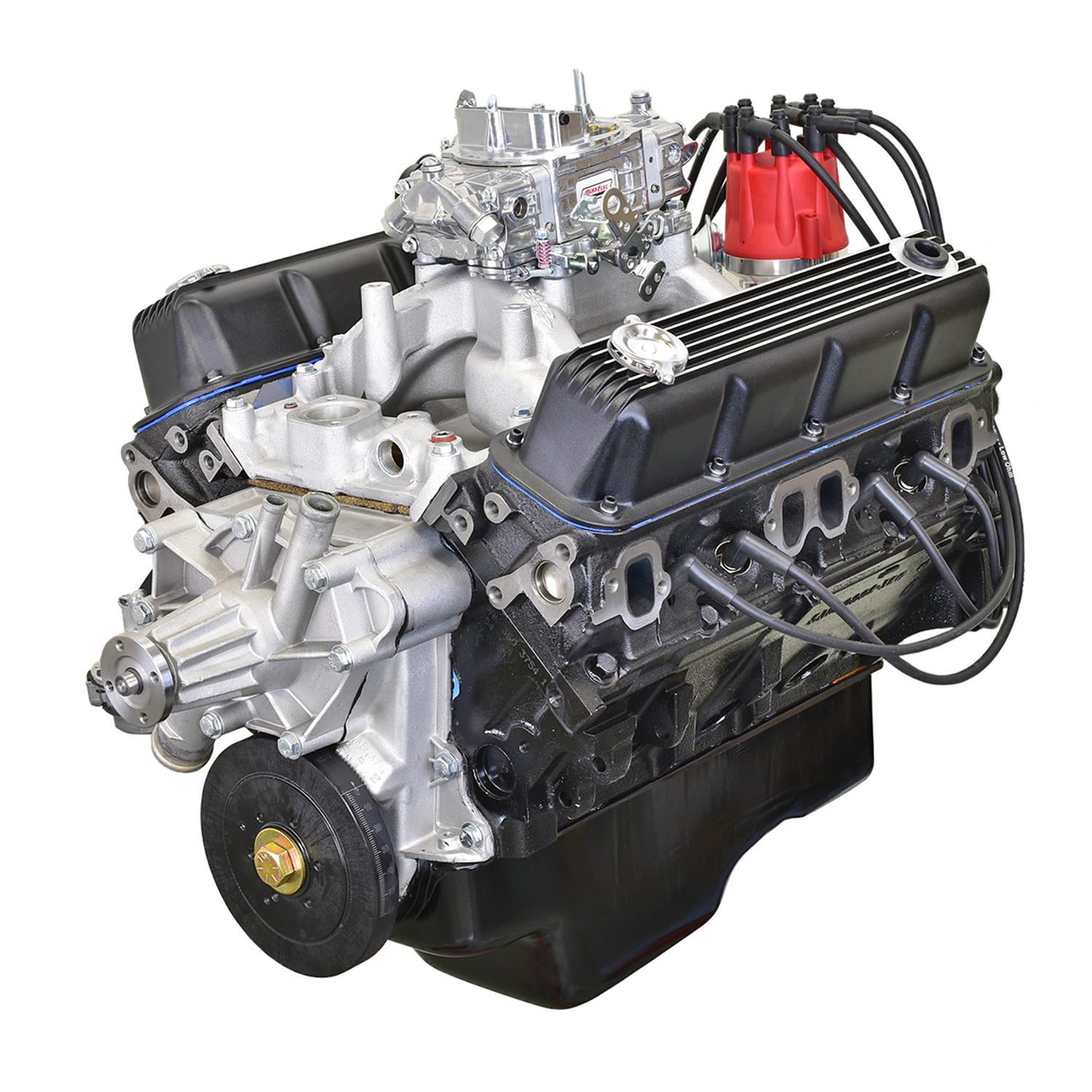

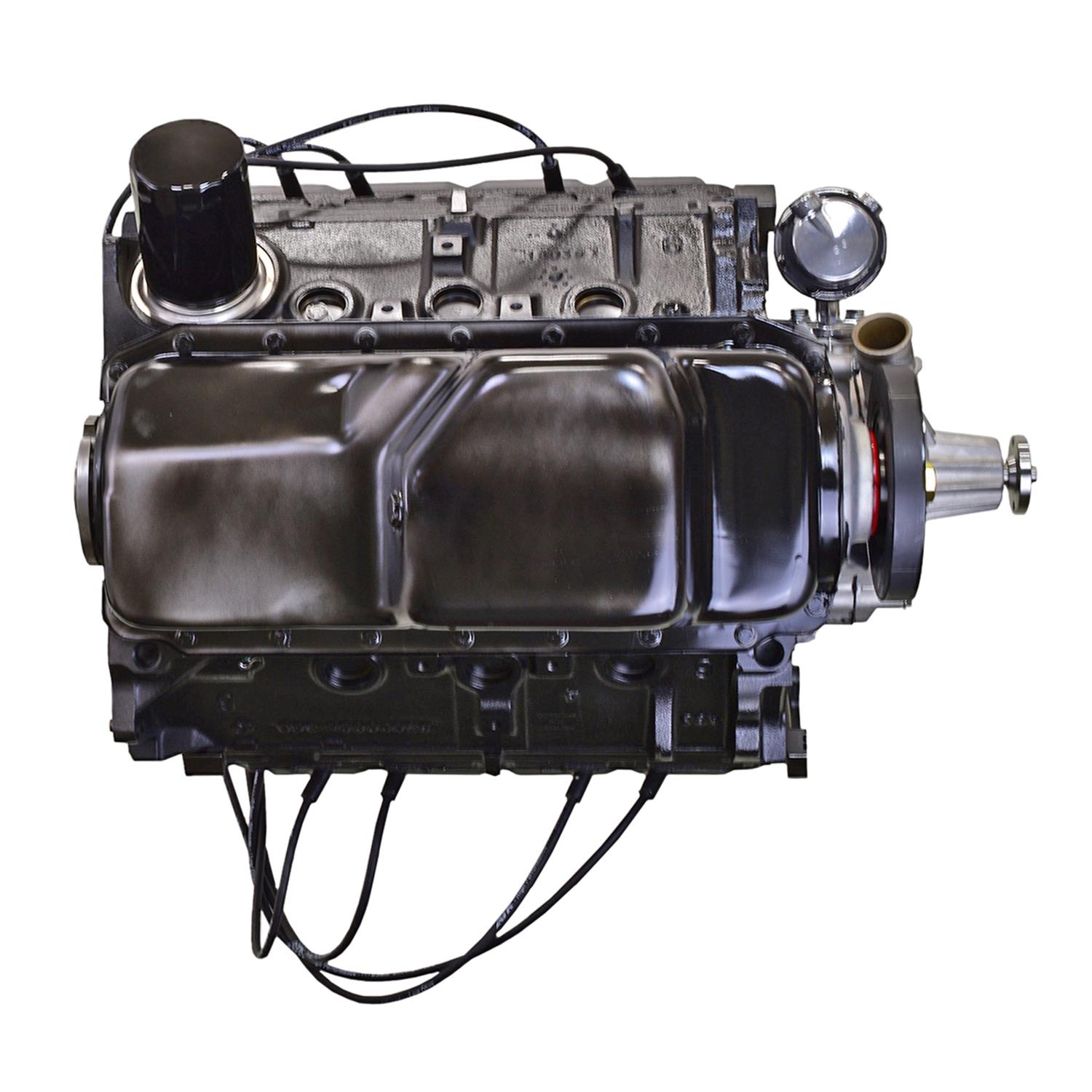

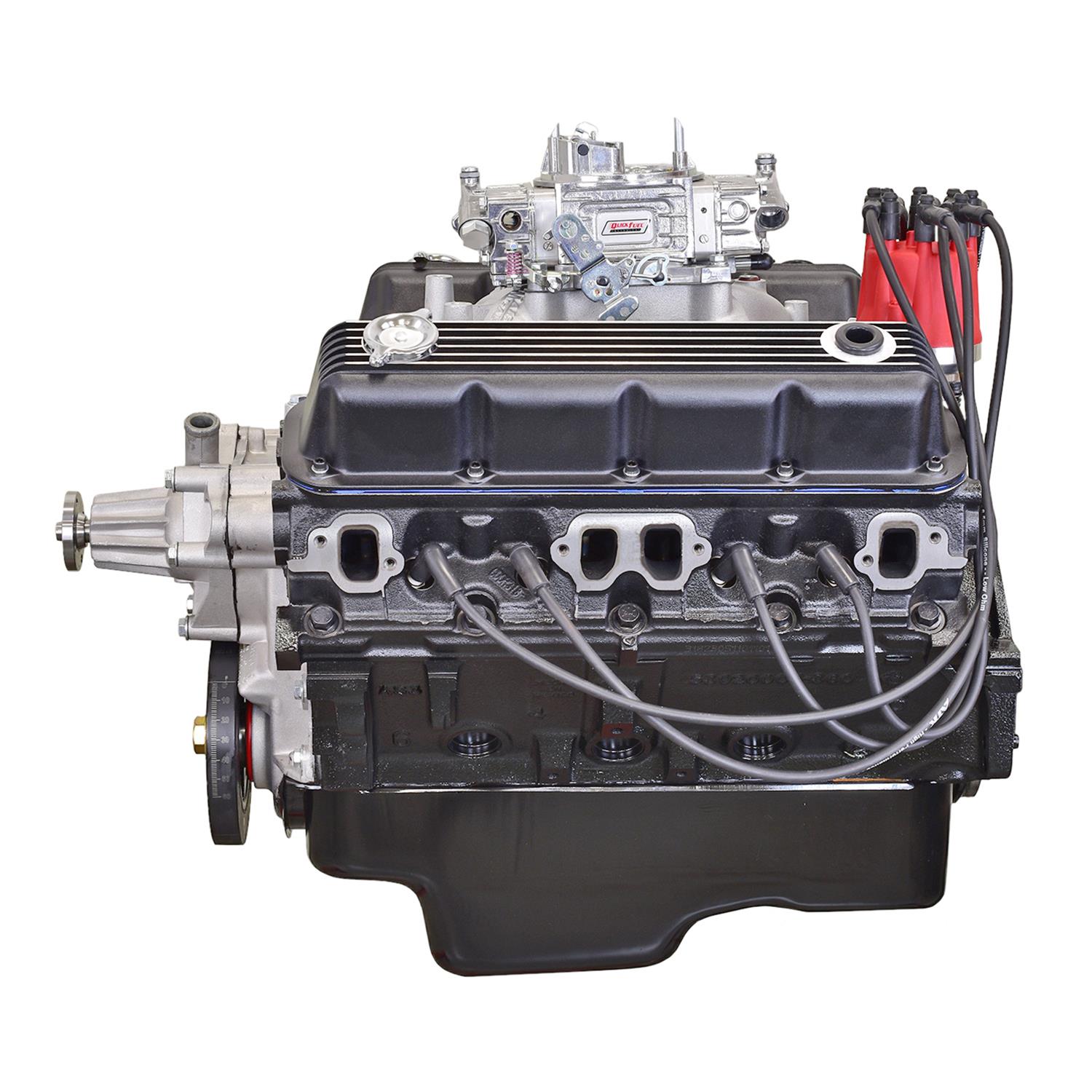

ATK High Performance Chrysler 360 Magnum 350 HP Complete Long Block Crate Engines HP113C

Overview

ATK High Performance Chrysler 360 Magnum 350 HP Complete Long Block Crate Engines

ATK High Performance Chrysler 360 Magnum 350 HP complete long block crate engines incorporate Engine Quests upgraded casting with the following benefits:

* Thicker deck for greater strength
* Improved design resists cracking
* Superior port finish for increased flow
* Water flow redesigned for greater thermal conductivity
* Hardened exhaust seats
* CNC-machined guides and seats

Engine specifications:

* HP: 350
* TQ: 430
* Block: OE Magnum roller block 1993-2001
* Bore/stroke: 4.040 in. x 3.580 in.
* Displacement: 360 cu. in.
* Crankshaft: OE cast
* Rods: OE 6.123 in.
* Pistons: Hypereutectic 9.3:1 compression
* Rings: Chromoly
* Camshaft: Hydraulic roller
* Cam specs: 207/217 at 50 .496/.496 112 LSA
* Timing chain: Double roller
* Cylinder heads: New upgraded Engine Quest cast iron 62cc/172cc 1.78/1.50
* Rocker arms: Steel 1.6 pedestal rockers
* Oil pan: 5 qt. OE front sump
* Oil pump: Melling STD volume
* Balancer: Externally balanced
* Intake manifold: Edelbrock performer RPM air gap dual plane
* Distributor: Pro billet RTR (Iron Gear)
* Water pump: OE early pump
* Carburetor: Quick Fuel 680 cfm vacuum secondary’s electric choke
* Fuel pump: Holley mechanical 110 gph
* Spark plugs: Autolite
* Spark plug wires: 8mm
