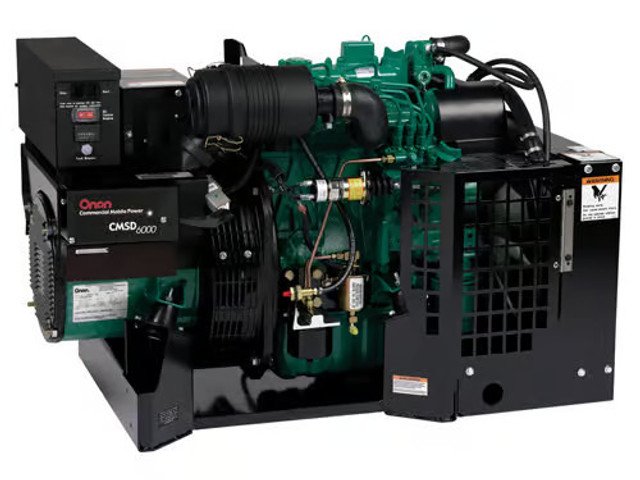

Cummins Onan 7500 Watt Diesel Generator
7500 Watts 120/240 Volts Single Phase Flexible Installation Liquid Cooled with Pusher Fan
Designed for commercial applications, the 7500 Watt Diesel Generator from Cummins Onan features exceptional noise control, a 3-cylinder Kubota D1105 diesel engine, and smooth operation. Glow plugs provide reliable engine starting in all weather conditions. The 7.5HDKAL-1 has a pusher-type radiator fan for the cross-flow radiator. A remountable 90-degree exhaust elbow plus remote mountable DC controls and multiple oil fill and check points offer installation flexibility.
The 17.1 horsepower diesel engine features top and side oil fill and check points for compartment or platform installations with a vertically mounted full flow oil filter and a replaceable air cleaner. The fuel filter and water remover is also vertically mounted. Cummins equipped this diesel generator with a four-position exhaust elbow, electric fuel pump, and a base pan for drip control. A 30-Amp Alternator keeps the battery charged.
7500 Watt Diesel Generator
The 12-Volt System DC Controls include a start/stop/preheat switch, hour meter, automatic engine shutdown for high coolant temperature and low oil pressure with a manual reset requirement. Also included is a remote connector for the start/stop/preheat switch and gauge package.
Cummins equipped the 7500 Watt generator with electronic voltage regulation and frequency regulation. The alternator features a damper bar system for low harmonic distortion.
| No Load/full Load | Constant Load | |
| Voltage Regulation | 2.5% | 1.0% |
| Frequency Regulation | 2.5% | 1.0% |
Cummins SD7.5 Fuel Consumption
Requires No. 2 diesel with a Cetane of at least 45 for reliable starting.
| Fuel Consumption | No Load | Half Load | Full Load |
| Gallons per Hour | 0.25 GPH | 0.56 GPH | 0.90 GPH |
Cummins Onan 2-Year/2000-Hour Limited Warranty Included.
Product Specifications
Model
Model Number; 7.5HDKAL-1
Manufacturer; Cummins Onan
Rated Watts; 7500 Watts
Rated Amps; 120 Volts 62.5 Amps | 240 Volts 31.3 Amps
Voltage; 120/240 Volts
Enclosure; Open
Decibel Rating; 76 dBA at 10 Feet
Type; Commercial Mobile Generator
Features
Starting System; Electric Start
Low Oil Alert; Low Oil Shutdown
Mainline Breaker; 35 Amp 2-Pole
Hour Meter; Yes
Battery Requirement; 12-Volt
Weight; 490 Pounds
Dimensions; 37.3L x 21.0W x 23.9H inches
Warranty Information
Commercial Warranty; Cummins Onan 2-Year Limited Warranty (5-Year Drive Train)
Engine
Engine Brand; Kubota
Engine Size; 3 Cylinder 1124cc
Engine RPM; 1800
Cooling System; Liquid Cooled
Alternator
Alternator Type; 4-Pole Brushed
Frequency; 60 Hertz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; No. 2 Diesel
