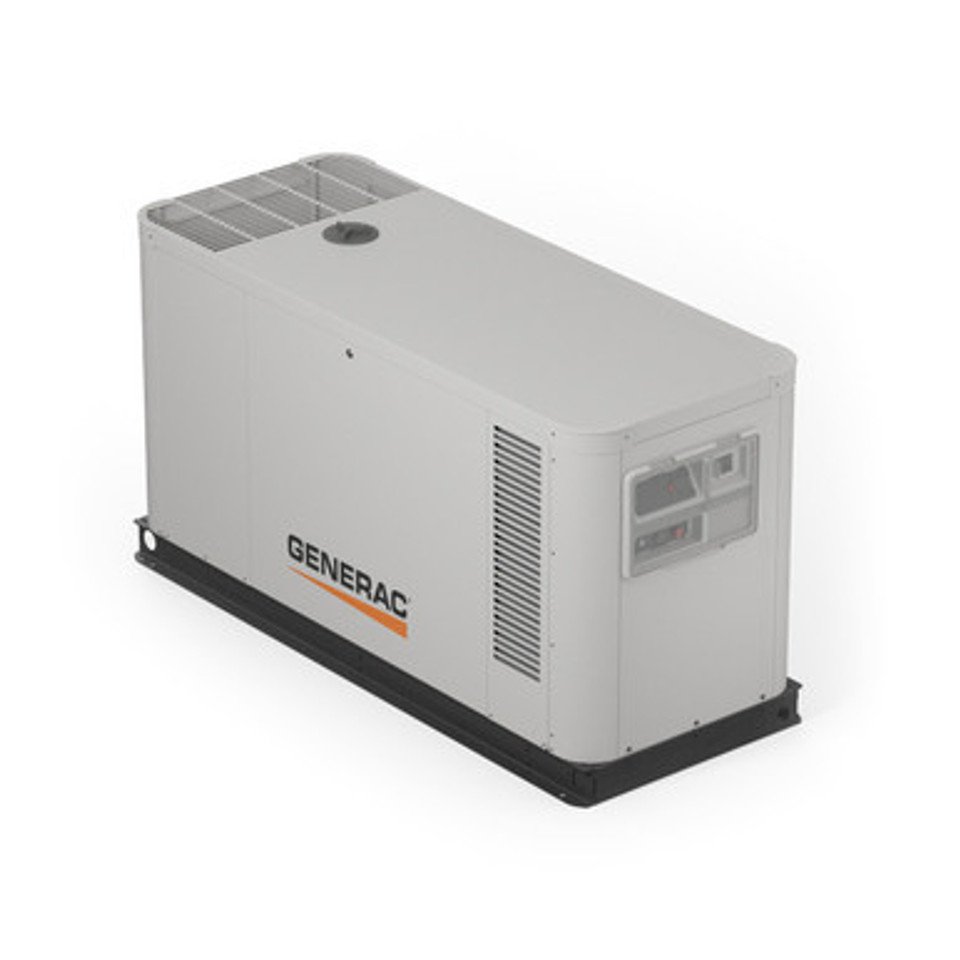

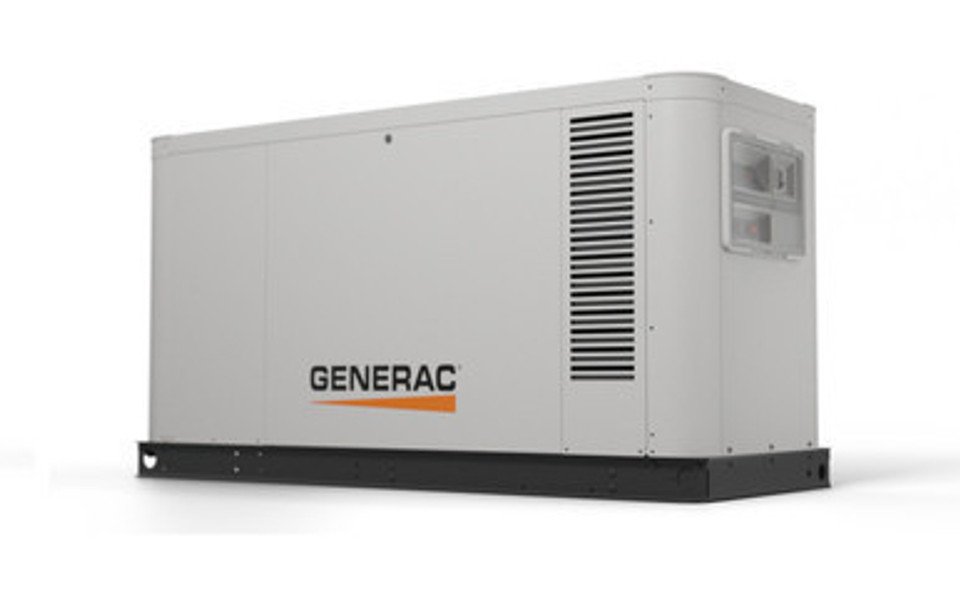

Generac 40kW Generator
40kW NG or LP 120/240-Volts 1-Phase EPA and SCAQMD Certified Single Side Maintenance
The Generac 40 kW Generator adds well-known features to new improvements with the Protector XG series. The 40kW XG04045 has a 4.5 Liter engine that runs at 1800 RPM under load and 1200 RPM at idle or Quiet Test mode. The Power Zone 410 Controller brings the latest in technology with additional functionality and more features than ever before, including the ability to select the fuel type at the controller without any other modifications. This controller is NFPA 110 capable.
40kW Standard Features
The new XG series carries forward the familiar features found in earlier models like quiet operation. The Generac 4.5-liter engine beats the competition on fuel efficiency for comparable generator models that produce less power. Generac maintains the UL-2200 listing along with EPA and SCAQMD Certifications. An aluminum enclosure protects the generator against corrosion. The 40kW XG includes a Generac 5-year/2000-hour limited warranty.
Generac didn’t stop with the features that Protector Series users came to expect.
New 40 kW Generator Features
New Electro-Galvanized base frame components prevent rust and corrosion. Single-side regular maintenance make service fast and easy through the front, key-locked panel. Change or check the oil, oil filter, and air filter; check or change the coolant; replace the spark plugs and check the battery.
Fuel setup is made easier than ever through the controller. Set the fuel type in the controller—no other adjustments are necessary.
The generator exercises at 1200 RPM for a peaceful 58 dBA noise level and 64 dBA under normal load. The PowerZone 410 Controller has more features and more capability than ever before, including an overload control that eliminates the need for a circuit breaker.
Cellular connectivity is standard for Mobile Link & Fleet.
Product Specifications
Model
Model Number; XG04045ANAC
Manufacturer; Generac Power Systems
Made In USA; Yes
Rated Watts; 40kW
Rated Amps; 167 Amps
Voltage; 120/240 Volts Single Phase
A/C Ton Rating; 5-Ton
Enclosure; Aluminum Enclosure
UL Listed; UL-2200
Decibel Rating; 58 dBA Quiet Test | 64 dBA Normal Load
Type; Standby Generator
Series Name; Protector Gas
Features
Starting System; Automatic
Low Oil Alert; Low Oil Shutdown
Idle control; 1200 RPM Idle
Mainline Breaker; 200-Amp
Battery Requirement; 12-Volt Group 27R, 725 CCA
Mounting Pad; Prepared Pad Required
Weight; 1780 Pounds
Dimensions; 83.4L x 34W x 45.2H (inches)
Warranty Information
Consumer Warranty; Generac 5-Year / 2000 Hour Limited Warranty
Commercial Warranty; Generac 5-Year / 2000 Hour Limited Warranty
Engine
Engine Brand; Generac
Engine Size; 4.5 Liter
Engine RPM; 1800 RPM
Cast Iron Sleeve; Yes
Cooling System; Liquid Cooled
Alternator
Alternator Type; Synchronous 4-Pole Self Excited Single Phase
Frequency; 60 Hertz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Natural Gas or LP Propane
Fuel Gauge; No
NG Power Capacity; 40kW
LP Power Capacity; 40kW
NG Consumption @ Full Load; 494 Cubic Feet per Hour
NG Consumption @ Half Load; 289 Cubic Feet per Hour
LP Consumption @ Full Load; 5.7 Gallons per Hour
LP Consumption @ Half Load; 3.8 Gallons per Hour
